compact robust machines
These dumpers can be equipped with an hydrostatic transmission
with a 180 angle rotating skip
![3tonne swivel tip dumper SD30R dumper | 3tonne swivel tip dumper SD30R](https://betonniere.cn/wp-content/uploads/2022/04/SD30R-E.jpg)

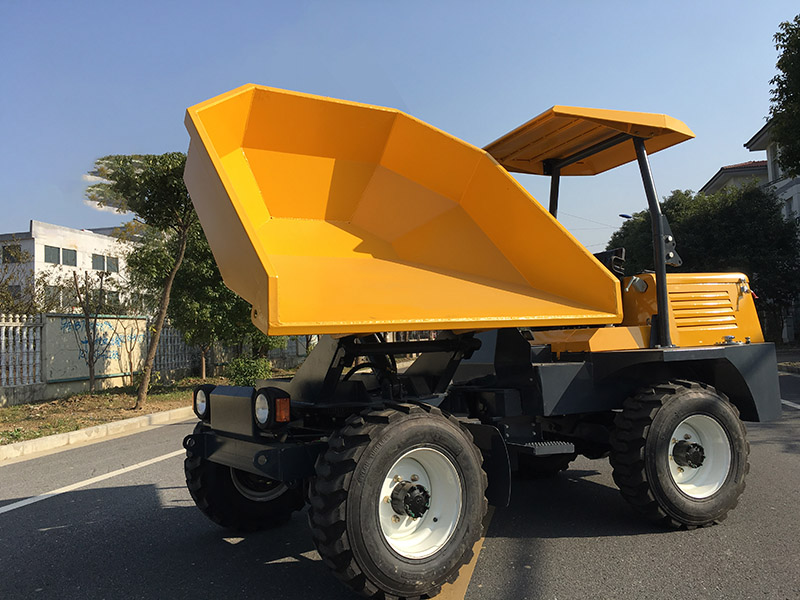

Model: SD30R
Rated Loading Weight: 3000kg
Bucket Capacity: 1.50 CBM
Wheel base: 2000MM
Thread: 1500MM
Max grade ability: 36%
Min. Ground clearance: 248MM
Working pressure of hydraulic system: 16MPA
Forward 5 speeds and reverse 5 speeds gear
Minimum turn radius: 5000MM
Gradeablity: 21
Overall dimensions: 3900X1800X2600MM
Engine Model: DEUTZ MADE IN CHINA
3 cylinders, AIR cooled, diesel engine
Rated power: 38KW/2400RPM
Tyre size: 12-16.5
Shipment: 3units in 40ft container or 6units in 40HQ
